Place of Origin : China
Brand Name : Flyda
Certification : CE ROHS
Model Number : FLU-08-ID25
MOQ : 1 PC
Price : $150-$180
Packaging Details : Standard carton box
Delivery Time : 3-5 working days after payment
Payment Terms : 100% prepaid
Supply Ability : 5000pcs/pc
Delivery method : DHL Fedex UPS TNT EMS

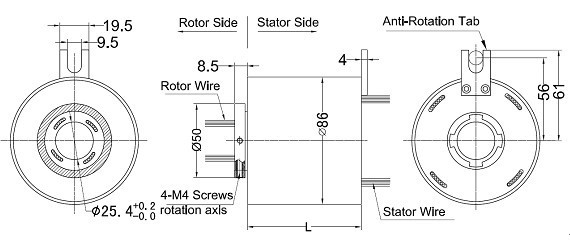

USB slip ring with bore size 25.4mm
OD 86mm,
length 72mm

| USB2.0 Specifications | |||
| USB | USB2.0 | USB2.0 connectors | rotor:male,stator:male |
| BER | 10E-11 | Insert loss | 2db |
| Power/signal Specifications | |||
| Circuits | 8 | Current | Signal(2A), |
| Voltage | 440 VDC/VAC | Max speed | 250RPM |
| Housing Material | Aluminium Alloy | Torque | 0.8N.m |
| Working life | 50million revolutions | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | 10 milliohms | Contact Resistance | 100mOhm(AWG16#,300mm) |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® |
| Insulation resistance | 1000MΩ @600VDC | Lead Lengths | 250mm |
| Operating Temp | -40°C to 80°C | Protection | IP51 |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
|
|
1 channel USB 2.0 with 8 cicuits signal of hold size 25.4mm through bore USB slip ring Images |
