Capsule slip ring, 0-72WIRES*2AMP SLIP RINGS

Place of Origin : Guangdong, China

Brand Name : OEM

Certification : CE, ROHS

Model Number : GC022-6

MOQ : 5 pcs

Price : $12-$400

Packaging Details : standard packing with box

Delivery Time : 1-5 days after got the payment

Payment Terms : 100% prepaid

Supply Ability : 10000 Piece/Pieces per week

Contact Now

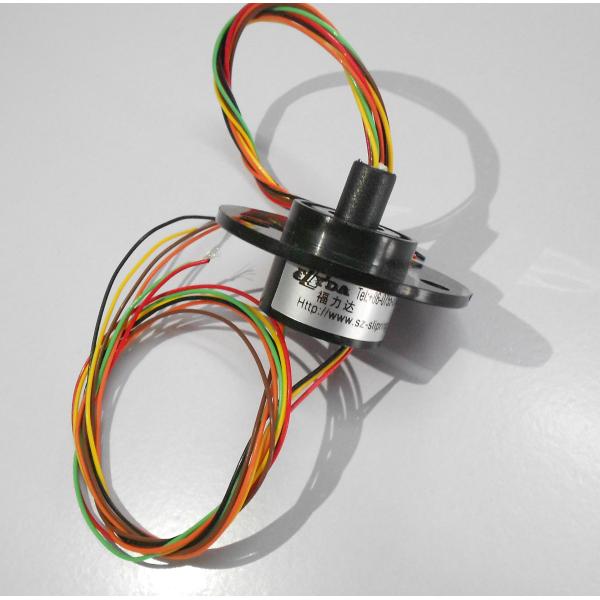

Capsule slip ring, 0-72 WIRES*2AMP SLIP RINGS
Specifications

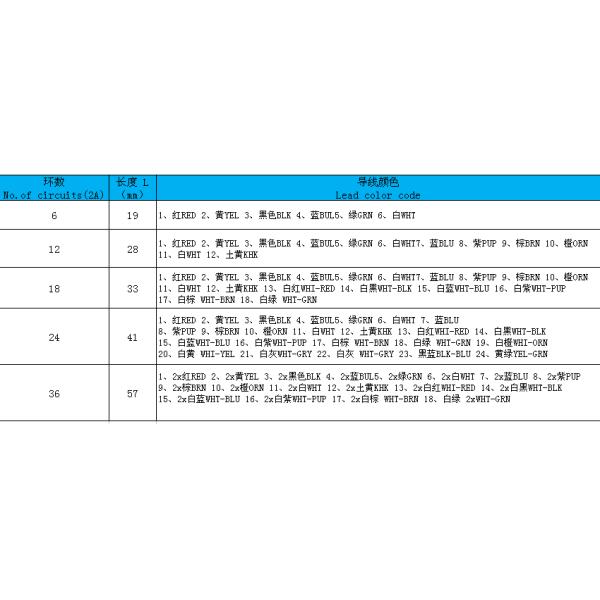

Wires Max 72(see table as above) Current Signal(2A),Multiple 2A
Voltage 240 VDC/VAC Max speed 350RPM
Overall diameter 22mm(0.87") Length
Contact Material Precious Metal:gold-gold Contact Resistance <150mOhm(AWG28#,250mm)
Housing Material Plastics Torque 0.04N.m
Working life depends on working speed Electrical noise <10mΩ
Dielectric strength 600VDC@50Hz Lead Wire UL Teflon® Awg28
Insulation resistance 1000MΩ@500VDC Lead Lengths 250mm
Operating Temp. -40°C to 80°C Protection IP51
Mechanical vibratio MIL-SID-810E Humidity 10% to 90% RH
Materials Lead Free,RoHS compliant CE Certified YES
Capsule slip ring, 0-72WIRES*2AMP SLIP RINGS
Typical Application
  • CCTV Monitoring System.
  • Electrical test equipment.
  • Medical equipment.
  • Rotary table
  • Robotics
  • Laboratory equipmen
  • Manufacturing and process control equipment
  • and so on...
